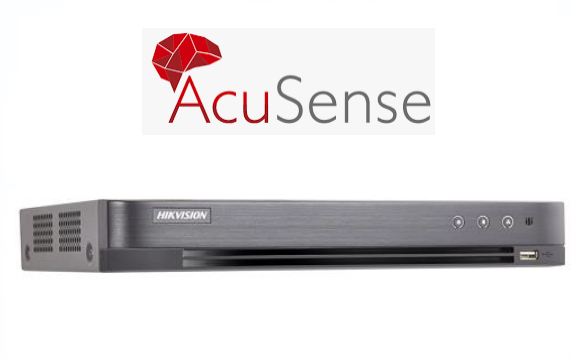

DVR TURBO 4.0 ACUSENSE FULL HD 16 CANALES + 2 IP

Descripción

GRABADOR DE CÁMARAS DE 16 CANALES ACUSENSE + 8 IP. HD-TVI, AHD Y ANALÓGICAS. ENTRADA COAXIAL DE VIDEO Y AUDIO. SOPORTA 1 HDD DE HASTA 10 TB (no incluido) . 1 ENTRADA Y SALIDA DE AUDIO. SALIDAS HDMI Y VGA SIMULTANEAS Y CBVS. ETHERNET 10/100

Características

Smart Analysis
Facial Detection And Capture
Face picture comparison, face picture search
Face Picture Library
Up to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)
Face Picture Comparison
1-ch face picture comparison alarm
Human/Vehicle Analysis
False Alarm Reduction
Up to 4-ch
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
Main stream: When 1080p lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Video Bitrate
32 Kbps to 6 Mbps
Dual Stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Video And Audio
IP Video Input
2-ch (up to 18-ch) Up to 6 MP resolution IP enhanced mode on: 8-ch (up to 24-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input
4 MP lite, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/FA, for channel 1/2 of iDS-7208HQHI-M1/FA, and for channel 1/2/3/4 of iDS-7216HQHI-M1/FA.
AHD Input
4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI Input
4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
CVBS Input
PAL/NTSC
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)，16-ch via coaxial cable
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback
16-ch
Network
Remote Connection
128
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface
1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA
1 SATA interface, up to 10 TB capacity for each disk
Serial Interface
RS-485 (half-duplex)
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out
N/A
General
Power Supply
12 VDC, 2 A
Consumption(Without HDD)
≤24 W
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight (Without HDD)
≤ 2 kg (4.4 lb)

Soporte

3 AÑOS DE GARANTÍA en todos los productos Hikvision, ofrecida por el fabricante, contra defectos de fabricación y/o vicios del material que afecten al normal funcionamiento del mismo.
Contamos con un departamento técnico, con stock permanente de repuestos, que le permitirá contar con un servicio en caso de necesidad de reparación del producto. Para más información diríjase a la sección Soporte Técnico.
